Description

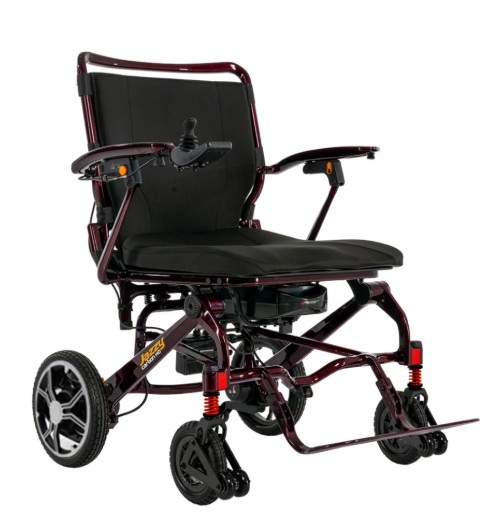

Jazzy® Carbon HD Heavy Duty. Lightweight.

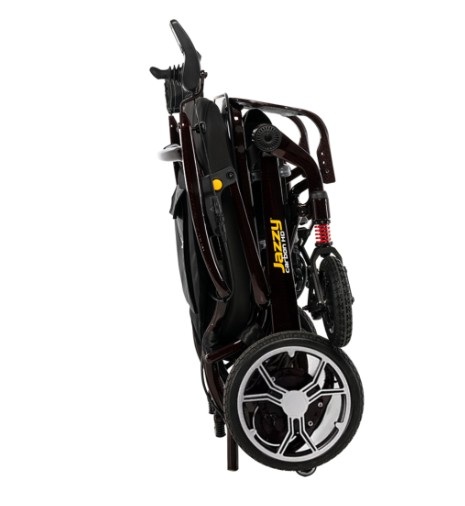

Weighing just 14.5 kg and boasting a 181 kg weight capacity, the Jazzy Carbon HD is a game-changing heavy-duty travel power wheelchair. It folds and locks into position in mere seconds and will keep you comfortable with a padded seat back and extra-wide foot platform.
Product Specifications
| Range Per Charge | Up to 20 km |
|---|---|
| Maximum Weight Capacity | 181 kg |
| Turning Radius | 92.5 cm |
| Maximum Speed | 6 km/h |
| Length & Width | L: 93.5 cm W: 67 cm |
| Weight Of Heaviest Piece | 14.6 kg |
| Seat Size Width and Depth | W: 51 cm x D: 51 cm (20″x20″) |
| Ground Clearance | 2.5 cm (at motor) |
| High Back Seat To Floor Range | 48 cm fixed |
| Standard Electronics | YT Control |
| Drive Train | Two-motor, rear-wheel drive |
| Braking System | Regenerative & electro-mechanical |
| Front Tyres | 6.5″ solid castors |
| Drive Wheels | 10.6″ solid |
| Battery Requirements | (1) 20Ah, 24V (lithium-ion, 436.8Wh) |
| Battery Charger | Off-board, 2A (lithium-ion) |
| Battery Weight | 3.4 kg |
| Colour Options | Cherry Black Carbon |
| Suspension | Full front and rear suspension |
| Maximum Recommended Incline Angle | 15.8% (9°) |
